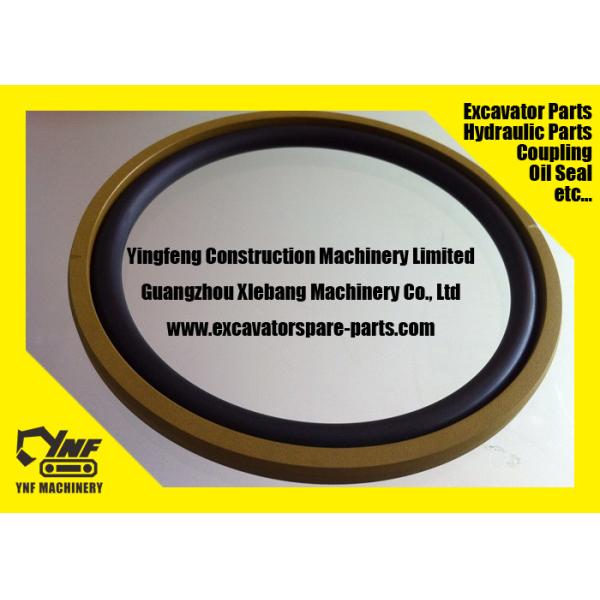

Super Level Excavator Seal Kits Hydraulic Piston Seal DAS PTFE
Place of Origin: | Guangdong,China (Mainland) |
Standard or Nonstandard: | Standard |
Style: | Mechanical Seal |
Material: | PTFE |
Hydraulic piston seal DAS
Seal can be used on below machines : , VOL-VO , KOMATSU, HITACHI, KOBELCO
, KATO, SUMITOMO, HYUNDAI, DOOSAN, DAEWOO,SAMSUNG
1. Material: NBR, SILICONE, VITON,HNBR, CR, PTFE, EPDM, etc. Can choose on your requirement;
2. types of Rubber Oil Seal: TC, TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC, DB etc, also can
make on your demand;
4. Different sizes of Oil Seal,Rubber Oil Seal,Rubber Seal, also can make on your size.
5.Optional color for you of the Oil Seal,Rubber Oil Seal,Rubber Seal,Rubber Gasket, O-Ring :Black, red,
yellow, brown, white, green, violet etc, can make it on your order;
6. Your OEM order of Oil Seal,Rubber Oil Seal,Rubber Seal or O-Ring and Rubber Gasket is welcomed
as well.
7. Apply for: Auto, motorcycle, machinery, water pumps, valves, etc.
8. We promise the high quality but competitive price of Oil Seal,Rubber Oil Seal, O-Ring, Rubber Seal,
Rubber Gasket, Rubber Ring, Sealing Ring, Sealing Gasket.
APPLIION |
MATERIAL | NBR+POM+HY |
TEMP | -25°C - 100°C |
PRESSURE | 400kg/cm2 |
SPEED | 0.5 m/s |
ITEM | OD | ID | L | H |
DAS-032 | 32 | 22 | 15.5 | 20.7 |
DAS-040 | 40 | 30 | 12.5 | 20.5 |
DAS-050 | 50 | 34 | 18.4 | 31.1 |
DAS-060 | 60 | 44 | 18.4 | 31.1 |
DAS-063 | 63 | 47 | 18.4 | 31.1 |
DAS-070 | 70 | 50 | 22.4 | 35.1 |
DAS-080 | 80 | 60 | 22.4 | 35.1 |
DAS-090 | 90 | 70 | 22.4 | 35.1 |
DAS-100 | 100 | 75 | 22.4 | 35.1 |
DAS-105 | 105 | 80 | 22.4 | 35.1 |
DAS-110 | 110 | 85 | 22.4 | 35.1 |
DAS-120 | 120 | 95 | 22.4 | 35.1 |
DAS-125 | 125 | 100 | 25.4 | 38.1 |
DAS-125*25.4 | 125 | 100 | 25.4 | - |
DAS-130 | 130 | 105 | 25.4 | 44.4 |
DAS-135 | 135 | 110 | 25.4 | - |
DAS-140 | 140 | 115 | 25.4 | 44.4 |
DAS-145 | 145 | 120 | 25.4 | - |
DAS-150 | 150 | 125 | 25.4 | 38.1 |
DAS-150*44.4 | 150 | 125 | 25.4 | 44.4 |
DAS-160 | 160 | 135 | 25.4 | 44.4 |
DAS-180 | 180 | 155 | 25.4 | 50.8 |
DAS-200 | 200 | 175 | 25.4 | 50.8 |
The size you want is not listed on the table ? Please contact us . We can provide any size you want.
We always provide product with Excellent quality and competitive price.
